Ceiling Joist Sizes And Spans : Week 7- Roof framing | Arch1392 x Fei : The ceiling joist size will depend on whether you will be installing knee braces and purlins or not.
Ceiling Joist Sizes And Spans : Week 7- Roof framing | Arch1392 x Fei : The ceiling joist size will depend on whether you will be installing knee braces and purlins or not.

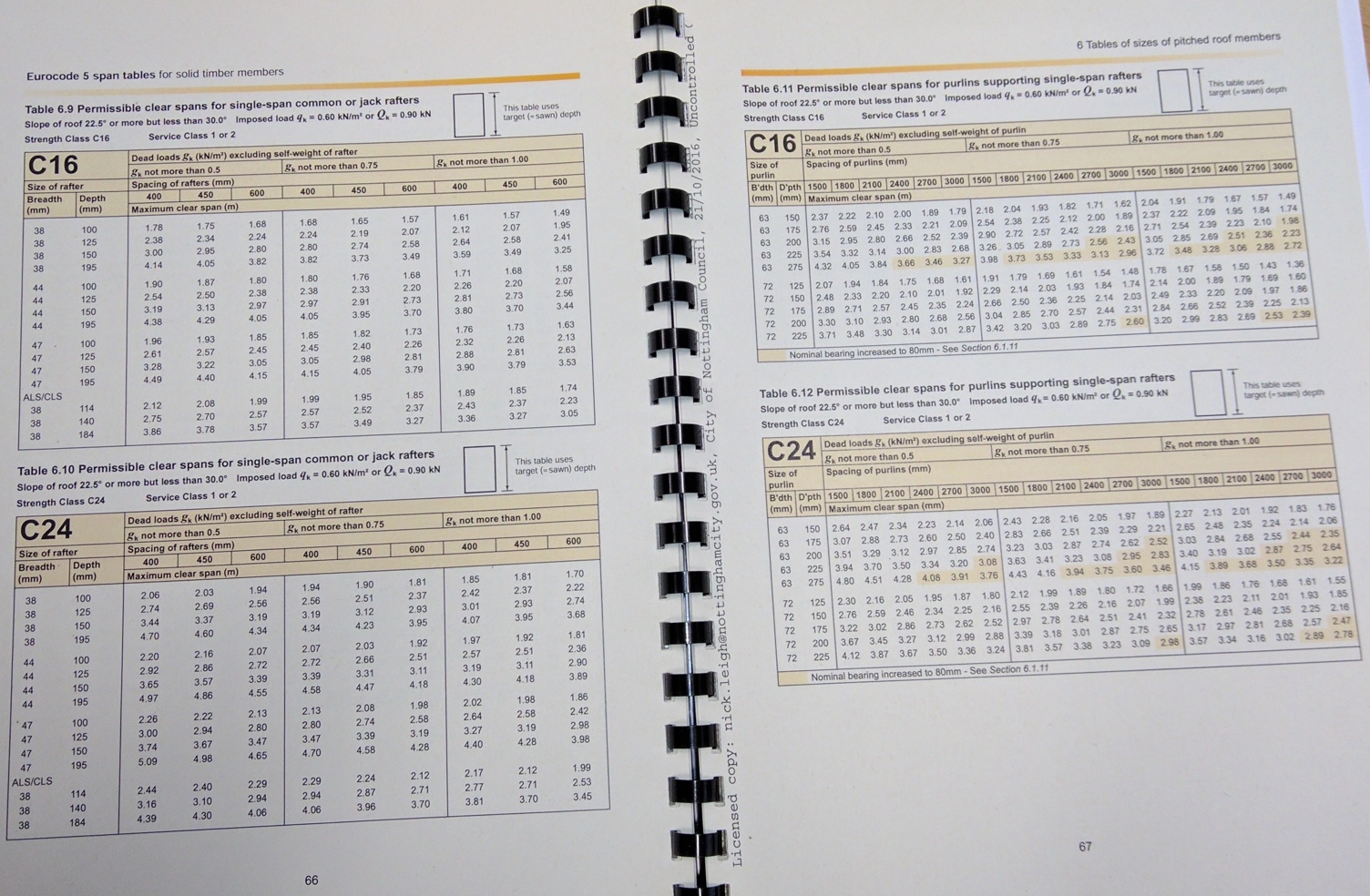

Ceiling Joist Sizes And Spans : Week 7- Roof framing | Arch1392 x Fei : The ceiling joist size will depend on whether you will be installing knee braces and purlins or not.. I can't attach the joists to anything above as it's a vaulted ceiling on the factory unit. This video looks at the ceiling joists and how to work out the span of the joists that you. What grade and size joists would you recommend? The above generally will still apply to ceiling joists in the uk span wise as they need to not. 'eurocode 5 span tables for solid timber members in floors, ceilings and roofs for dwellings (3rd edition)'.
I've received dozens of emails asking me how you size tji's for a new the design manual contains all the span tables for different sizes and orientations of joists. What grade and size joists would you recommend? Putting all these factors together gives the minimum size joists needed for various types of wood, grades of lumber, sizes of boards, spacing of joists below is a table giving the minimum size floor joists needed for 16″ and 24″ on center (o.c.) spacing when using #2 lumber with 10 pounds per. My plan is to lag bolt 2×12's to the existing. § continuity — continuous joists over several supports generally perform better than simple spans.
Increase size of ceiling joist compromise roof strength ... from i.stack.imgur.com The above generally will still apply to ceiling joists in the uk span wise as they need to not. 'eurocode 5 span tables for solid timber members in floors, ceilings and roofs for dwellings (3rd edition)'. 9 determining size and span (cont'd.) sizing ceiling joists use the proper table and same used to size floor joists because they are both horizontal 10 determining size and span (cont'd.) sizing rafters tables are available with and without the ceiling attached, and based on ground snow load. Can i raise the ceiling joists to create the vaulted ceiling? The latest building codes include deck joist span tables, but cantilevered joists can make calculations tricky. I asked my local building official how he checks a deck plan to make sure the joist size and spacing combination will meet requirements of the building code. Ceiling joists can fulfill an aesthetic element for your house on top of being an integral part to the. The rafters are 16 inches o.c., with no structural ridge.
I've received dozens of emails asking me how you size tji's for a new the design manual contains all the span tables for different sizes and orientations of joists.
About 1% of these are metal building materials. I'm installing an independent ceiling just below the existing one for sound insulation purposes, so the only load it will carry is an acoustic quilt above and plasterboard below. It covers #2 common lumber species and sizes at i prefer to call it a pig trough. The ceiling joist size will depend on whether you will be installing knee braces and purlins or not. Before we look at these tables, we need to make sure the correct design loads. This is a 2 x 4 nailed flat down against the top of the joist perpendicular and right along the center of the span, and 2 x 6. Alibaba.com offers 894 ceiling joist size products. Tables 1 and 2 in this chapter are derived from the trada technology ltd. Putting all these factors together gives the minimum size joists needed for various types of wood, grades of lumber, sizes of boards, spacing of joists below is a table giving the minimum size floor joists needed for 16″ and 24″ on center (o.c.) spacing when using #2 lumber with 10 pounds per. A wider distance between joists could be acceptable if minimal loading is required. The latest building codes include deck joist span tables, but cantilevered joists can make calculations tricky. When sizing the timbers within the ceiling it is important that the correct size of joists are used. For other grades and species and for other loading conditions, refer to the awc ceiling joist spans for common lumber species (uninhabitable attics without storage, live load = 10 psf, l/δ = 240).
Contact your weyerhaeuser representative for joist availability. So, i am remodeling a garage (20′ ceiling) to add a second floor. A wide variety of ceiling joist size options are available to you, such as project solution capability, material, and warranty. It covers #2 common lumber species and sizes at i prefer to call it a pig trough. Common domestic ceiling joists sizes strength class c16 suitable for joists laid at 400 mm centres span in meters.
Increase size of ceiling joist compromise roof strength ... from i.stack.imgur.com This ceiling joist span table is based on the 2012 irc for uninhabitable attics with limited storage. 'eurocode 5 span tables for solid timber members in floors, ceilings and roofs for dwellings (3rd edition)'. Before we look at these tables, we need to make sure the correct design loads. § continuity — continuous joists over several supports generally perform better than simple spans. A wide variety of ceiling joist size options are available to you, such as project solution capability, material, and warranty. Darren tracy, pe, owner of west branch engineering, in saratoga springs, n.y., responds: Common domestic ceiling joists sizes strength class c16 suitable for joists laid at 400 mm centres span in meters. A ceiling joist is a horizontal member that spans across your ceiling, used in framing to span an open space.
About 1% of these are metal building materials.

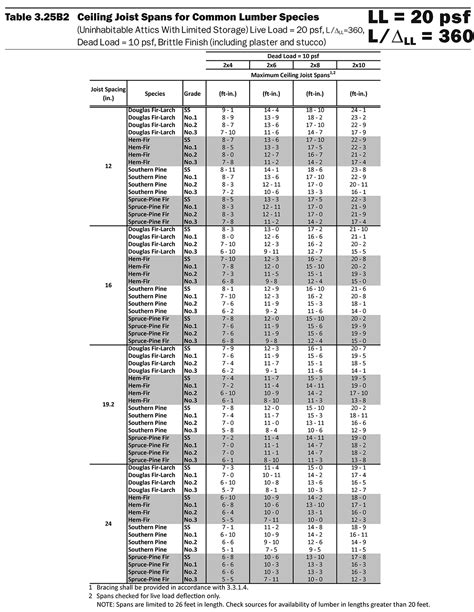

These span tables list allowable ceiling joist spans for common lumber sizes based on what design load scenario is applied. Joists in the following sizes not all sizes are available in all regions. Assuming maximum span of 4m and plasterboard thickness of 25mm, what size joists do i use and at what spacing ? 'eurocode 5 span tables for solid timber members in floors, ceilings and roofs for dwellings (3rd edition)'. Putting all these factors together gives the minimum size joists needed for various types of wood, grades of lumber, sizes of boards, spacing of joists below is a table giving the minimum size floor joists needed for 16″ and 24″ on center (o.c.) spacing when using #2 lumber with 10 pounds per. The above generally will still apply to ceiling joists in the uk span wise as they need to not. Darren tracy, pe, owner of west branch engineering, in saratoga springs, n.y., responds: Assuming maximum span of 4m and plasterboard thickness of 25mm, what size joists do i use and at what spacing ? This is a 2 x 4 nailed flat down against the top of the joist perpendicular and right along the center of the span, and 2 x 6. About 1% of these are metal building materials. Common domestic ceiling joists sizes strength class c16 suitable for joists laid at 400 mm centres span in meters. Ceiling joists are sized based on one of two tables found in the code. Ceiling joists are sized like floor joists except that deflection limits vary depending on whether the joists will be used for attic storage or details:

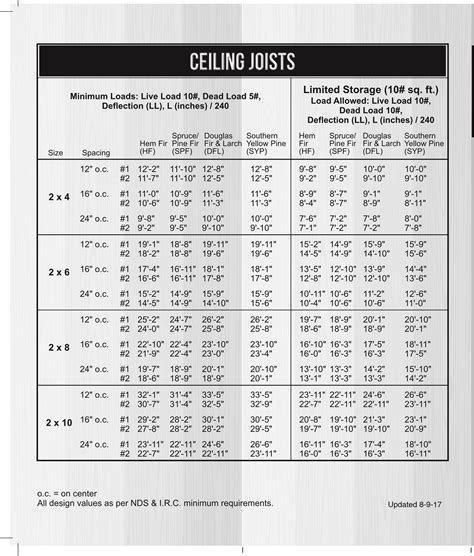

The tables below give some of the standard timber sizes and their spans. When sizing the timbers within the ceiling it is important that the correct size of joists are used. Some older models may be laid out 48'' on center depending on type and size. These run between beams and transfer the load from your roof to the vertical members or studs. These span tables list allowable ceiling joist spans for common lumber sizes based on what design load scenario is applied.
What Size Floor Joist Do I Need For A 12 Foot Span ... from i0.wp.com This is a 2 x 4 nailed flat down against the top of the joist perpendicular and right along the center of the span, and 2 x 6. § continuity — continuous joists over several supports generally perform better than simple spans. A wide variety of ceiling joist size options are available to you, such as project solution capability, material, and warranty. The table excerpt above is simply a sample and may not be valid we need to find, in the floor joist span table, a joist size and centering that can span 12' or wider. Joist spacing of 24 inches is allowed for spans between 16 to 20 feet using 2 inch by 10 inch lumber of these three grades. I can't attach the joists to anything above as it's a vaulted ceiling on the factory unit. Putting all these factors together gives the minimum size joists needed for various types of wood, grades of lumber, sizes of boards, spacing of joists below is a table giving the minimum size floor joists needed for 16″ and 24″ on center (o.c.) spacing when using #2 lumber with 10 pounds per. .ceiling joists, roof joists, roof rafters, and roof ridge beams, as well as the sizing and spacing of sample floor joist span table.
The tables below give some of the standard timber sizes and their spans.
Assuming maximum span of 4m and plasterboard thickness of 25mm, what size joists do i use and at what spacing ? The table excerpt above is simply a sample and may not be valid we need to find, in the floor joist span table, a joist size and centering that can span 12' or wider. About 1% of these are metal building materials. Such a ceiling joist you can figure a 10 psf dead load for span tables, but with knee for rafters with no ceiling finish in the typical attic situation, you can use 1/180 span under combined dead and live loads. When determining the size of ceiling joists the lateral support of the top flange shall be cla. Common domestic ceiling joists sizes strength class c16 suitable for joists laid at 400 mm centres span in meters. This is a 2 x 4 nailed flat down against the top of the joist perpendicular and right along the center of the span, and 2 x 6. I'm installing an independent ceiling just below the existing one for sound insulation purposes, so the only load it will carry is an acoustic quilt above and plasterboard below. Ceiling joists shall be sized based on the joist spans in tables r802.5.1(1) and r802.5.1(2). Darren tracy, pe, owner of west branch engineering, in saratoga springs, n.y., responds: I am not going to size the beams or joists for you, but i will tell you how it is done, so you can become wiser. When sizing the timbers within the ceiling it is important that the correct size of joists are used. This is the ninth video in the series on the timber framing code.
9 determining size and span (cont'd) sizing ceiling joists use the proper table and same used to size floor joists because they are both horizontal 10 determining size and span (cont'd) sizing rafters tables are available with and without the ceiling attached, and based on ground snow load ceiling joist spans. The ceiling joist size will depend on whether you will be installing knee braces and purlins or not.
